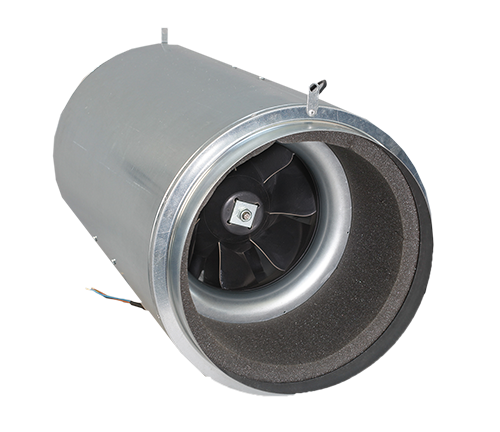

Iso-Max 315/3260m3
€ 413,22
In stock
Product Details
Can-Fan's Iso-Max series combines powerful ventilation with an integrated silencer in a unique design. These diagonal inline fans, with capacities ranging from 1480m³ /h to 4800 m³/h and diameters ranging from 250 mm to 355 mm , utilize a stator-rotor system for efficient airflow and low resistance. The metal housing with special sound-dampening foam ensures quiet operation,
Technical Specifications
| Model | Capacity | Diameter | Assets | Tension | Current | Material | Weight | Length | Noise level |
|---|---|---|---|---|---|---|---|---|---|
| Iso-Max 250/1480 | 1480 m³/h | Ø 250 mm | 149 W | 230 V / 50 Hz | 0.7 A | Metal, sound-absorbing foam | 11.5 kg | 68 cm | 62 dB |
| Iso-Max 250/2310 | 2310 m³/h | Ø 250 mm | 273 W | 230 V / 50 Hz | 1.2 A | Metal, sound-absorbing foam | 13.5 kg | 68 cm | 65 dB |
| Iso-Max 315/2380 | 2380 m³/h | Ø 315 mm | 261 W | 230 V / 50 Hz | 1.2 A | Metal, sound-absorbing foam | 15.0 kg | 68 cm | 66 dB |
| Iso-Max 315/3260 | 3260 m³/h | Ø 315 mm | 510 W | 230 V / 50 Hz | 2.3 A | Metal, sound-absorbing foam | 18.0 kg | 88 cm | 68 dB |
| Iso-Max 355/4800 | 4800 m³/h | Ø 355 mm | 600 W | 230 V / 50 Hz | 2.7 A | Metal, sound-absorbing foam | 20.0 kg | 88 cm | 70 dB |
Benefits of the Iso-Max series
- Quiet operation: Integrated foam silencer for low noise levels (62-70 dB).
- High efficiency: Stator-rotor system ensures uniform air flow and less pressure loss.
- Rugged Construction: Metal housing for durability and reliability.
- Flexible capacity: From 1480 m³/h to 4800 m³/h for various applications.
- Compatibility: Controllable with Can-Fan Satellite 4A or LCD EC Controller.
